Compound Module MobileDTRoutingHost

Models a mobile host with a wireless (802.11g) card in ad-hoc mode. This model contains the new IEEE 802.11 implementation, Ieee80211gNicAdhoc, and IP, TCP and UDP protocols. The mobility model can be dynamically specified with the mobilityType parameter.Supports opportunistic routing protocols by setting the **dtrouting.saorsmanager.routingProtocol parameter.

See also: MFMobileHost, WirelessHost, DTRouting, SaorsManager

Author:: Nikolaos Vastardis

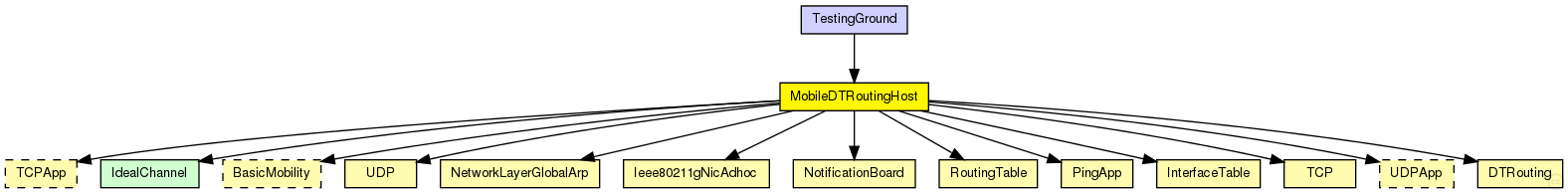

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Networks:

Parameters:

Properties:

Gates:

Unassigned submodule parameters:

Source code:

//
// Models a mobile host with a wireless (802.11g) card in ad-hoc mode.
// This model contains the new IEEE 802.11 implementation, Ieee80211gNicAdhoc,
// and IP, TCP and UDP protocols. The mobility model can be dynamically
// specified with the mobilityType parameter.Supports opportunistic routing
// protocols by setting the
// **dtrouting.saorsmanager.routingProtocol
// parameter.
//
// @see MFMobileHost, WirelessHost, DTRouting, SaorsManager
//
// @author: Nikolaos Vastardis
//

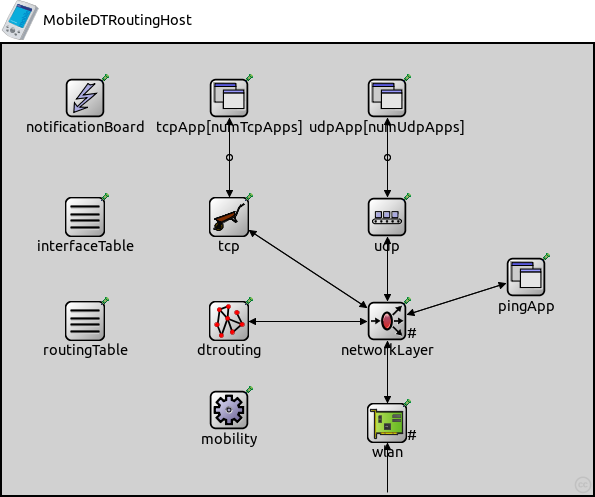

module MobileDTRoutingHost
{
    parameters:
        @node();
        int numTcpApps = default(0);
        int numUdpApps = default(0);
        string tcpAppType = default("");
        string udpAppType = default("");
        string routingFile = default("");
        string mobilityType = default("NullMobility");
        @display("i=device/pocketpc_s;bgb=591,451");
    gates:
        input radioIn @directIn;
    submodules:
        notificationBoard: NotificationBoard {
            parameters:
                @display("p=83,54");
        }
        interfaceTable: InterfaceTable {
            parameters:
                @display("p=83,173");
        }
        routingTable: RoutingTable {
            parameters:
                IPForward = true;
                routerId = "";
                routingFile = routingFile;
                @display("p=83,277");
        }
        tcpApp[numTcpApps]: <tcpAppType> like TCPApp {
            parameters:
                @display("p=227,54");
        }
        tcp: TCP {
            parameters:
                @display("p=227,173");
        }
        udpApp[numUdpApps]: <udpAppType> like UDPApp {
            parameters:
                @display("p=385,54");
        }
        udp: UDP {
            parameters:
                @display("p=385,173");
        }
        pingApp: PingApp {
            parameters:
                @display("p=524,233");
        }
        networkLayer: NetworkLayerGlobalArp {
            parameters:
                proxyARP = false;
                globalARP = true;
                @display("p=385,277;q=queue");
            gates:
                ifIn[1];
                ifOut[1];
        }
        dtrouting: DTRouting {
            parameters:
                @display("p=227,277");
        }
        wlan: Ieee80211gNicAdhoc {
            //wlan: Ieee80211NewNicAdhoc {
            parameters:
                @display("p=385,379;q=queue");
        }
        mobility: <mobilityType> like BasicMobility {
            parameters:
                @display("p=227,366");
        }
    connections allowunconnected:
        for i=0..numTcpApps-1 {
            tcpApp[i].tcpOut --> tcp.appIn++;
            tcpApp[i].tcpIn <-- tcp.appOut++;
        }

        tcp.ipOut --> networkLayer.tcpIn;
        tcp.ipIn <-- networkLayer.tcpOut;

        for i=0..numUdpApps-1 {
            udpApp[i].udpOut --> udp.appIn++;
            udpApp[i].udpIn <-- udp.appOut++;
        }

        udp.ipOut --> networkLayer.udpIn;
        udp.ipIn <-- networkLayer.udpOut;

        networkLayer.pingOut --> pingApp.pingIn;
        networkLayer.pingIn <-- pingApp.pingOut;

        networkLayer.MANETOut --> dtrouting.from_ip;
        networkLayer.MANETIn <-- dtrouting.to_ip;

        // connections to network outside
        radioIn --> wlan.radioIn;
        wlan.uppergateOut --> networkLayer.ifIn[0];
        wlan.uppergateIn <-- networkLayer.ifOut[0];
}
